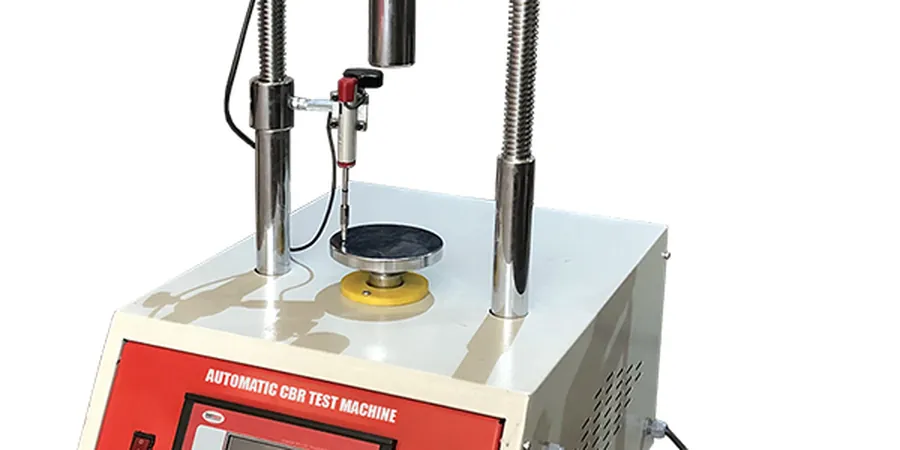

Laboratory CBR Testing for Pavement Design in Minneapolis

Evidence-based design. Reliable delivery.

LEARN MORE

Minneapolis subgrades don't forgive guesswork. The local glacial till and lacustrine clays can lose half their bearing capacity with just a small moisture increase. We've pulled samples from sites near Lake Nokomis that tested CBR 12 at optimum moisture, then dropped below CBR 4 after a 96-hour soak. That's the difference between a 6-inch aggregate base and a 14-inch section with stabilization. The grain-size distribution of these fine-grained tills often points to frost susceptibility, but the CBR value is what actually sizes the pavement layers. Our lab runs the soaked CBR per ASTM D1883 on remolded specimens compacted at the Proctor density you'll hit in the field. No generic correlations. We test the material your contractor will actually place, using the same compactive effort your spec requires. For city street reconstructions in Minneapolis, that soaked value is often the controlling number in the MnDOT flexible pavement design equation.

A 96-hour soaked CBR on Minneapolis glacial till can be half the unsoaked value. That single number changes your entire pavement section.

Our service areas

Laboratory CBR Testing for Pavement Design in Minneapolis
Technical reference — Minneapolis

Local considerations

The Minneapolis area sits on a complex sequence of glacial deposits. The Des Moines lobe left behind a stiff, silty-clay till that holds up well when dry but becomes problematic when saturated. The real risk is designing with unsoaked CBR values. We see it often. A contractor or engineer tests a sample at field moisture, gets a CBR of 18, and sizes the pavement accordingly. Then spring thaw hits. The water table, which sits only 3 to 6 feet below grade in much of south Minneapolis, rises. The subgrade softens. The CBR drops to 5 or 6. The pavement, designed for a much stronger support, fails within two seasons. Rutting appears. Alligator cracking follows. The soaked CBR test exists precisely to simulate this worst-case scenario. The 96-hour immersion period with surcharge weights replicates the saturated condition the subgrade will see repeatedly during the pavement's design life. Skipping the soak means betting the pavement budget against Minnesota's freeze-thaw cycles.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Applicable standards

ASTM D1883-21, ASTM D698-12 (Standard Proctor), ASTM D1557-12 (Modified Proctor), AASHTO T 193, MnDOT Pavement Design Manual

Technical parameters

ParameterTypical value
Test standardASTM D1883-21
Sample preparationRemolded at specified Proctor density (ASTM D698 or D1557)
Soaking condition96-hour immersion with surcharge weights simulating overlying pavement
Penetration piston rate0.05 in/min (1.27 mm/min)
CBR reported at0.1" and 0.2" penetration (corrected if 0.2" value is lower)
Specimen diameter6-inch (152.4 mm) mold, CBR mold per ASTM D1883
Typical surcharge during soak10 lb annular + 10 lb slotted weights (equivalent to ~20 psi)
Swell measurementDial gauge reading before and after soak period

Frequently asked questions

What does a laboratory CBR test cost in Minneapolis?

A single-point soaked CBR test typically runs US$130 to US$230, depending on whether we need to run the Proctor first. A three-point CBR curve with Proctor correlation falls at the upper end of that range. We quote firm prices before starting any work.

Why do Minneapolis projects require a soaked CBR value?

Because our subgrades are fine-grained glacial tills that lose strength when wet. The soaked test simulates the saturated condition during spring thaw, when the water table rises and the pavement is most vulnerable. Designing with the soaked CBR prevents underbuilt sections.

How long does a CBR test take from sample drop-off to report?

Count on five to seven business days. The 96-hour soak period is fixed by the standard. We need one day for compaction and setup, four days for soaking, and one day for penetration testing and reporting. Expedited scheduling is possible if we know the samples are coming.

Can you test aggregate base material with the CBR method?

Yes, but with limits. The CBR mold is 6 inches in diameter, so we screen out particles larger than 3/4 inch per ASTM D1883. For clean crushed stone with larger top sizes, a different approach may be needed. We'll advise when the material arrives.
